Industrial Water Softeners

Sparkling Clear Offers an extensive line of Water Softener Systems and Customizable Solutions

Contact Us

Custom filtration products available from over 300 cross referenced manufacturers.

Contact Us Today to Get Yours!

Pre-engineered, cataloged systems are available to provide exchange capacities from 15,000 to 3,000,000 grains of hardness removal per vessel and service flow rates up to 750 gallons per minute per vessel.

Increased flow rates and greater treatment capacities can be achieved by banking multiple vessels together. Water Softener Systems will also provide increased flow rates, additional capacity and continuous, uninterrupted softened water.

Water Softening Controllers

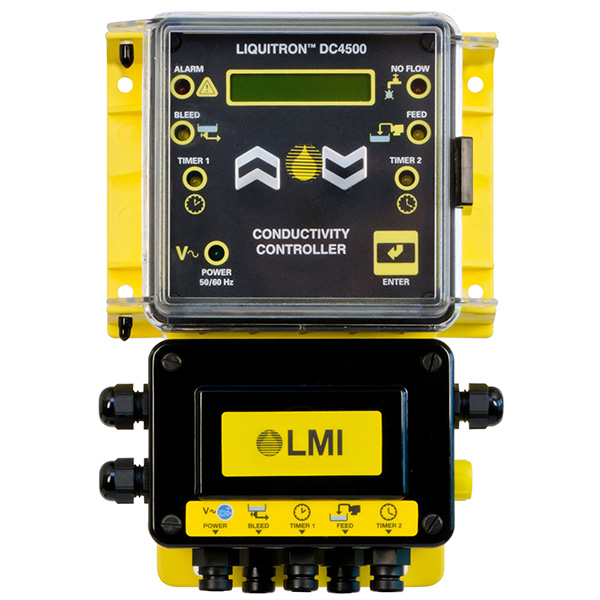

LIQUITRON™ DC4000 Series, Conductivity Controller

The LIQUITRON™ DC4000 Series Conductivity Controller is a microprocessor based control system that will operate in a variety of water treatment applications. Designed specifically as a bleed and feed cooling tower controller or boiler controller.

The DC4000 provides a set point and relay for conductivity control, and a variety of timer functions to control chemical addition.

Programming this controller is simple and is accomplished using only three keys.

The backlit LCD display and LEDs provide visual indication of operating conditions and equipment status.

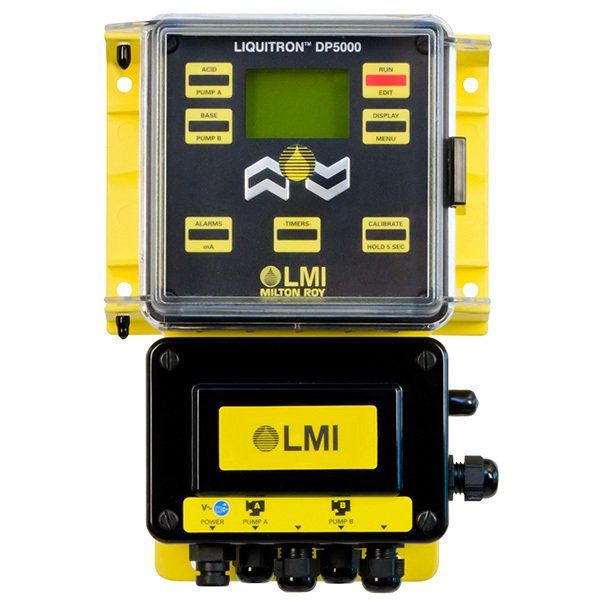

LIQUITRON™ DP5000 Series pH Controller

The LIQUITRON™ DP5000 Series is a dual channel pH Controller providing either relay or proportional pulse outputs to drive chemical metering pumps. A custom backlit display provides constant information regarding controller conditions with convenient easy to use navigation.

High and low alarm points, delay and limit timers, and other programmable features make the DP5000 the most adaptive pH controller available.

AquaMatic Controllers

962 AquaMatic Stager Control

An easily adaptable control of stagers for diaphragm valve nests. This fully programmable series of controls provide the ability to fine tune the operation to meet application requirements.


Features & Benefits:


  • Electronic Stager Control provide sophisticated electronic controls and reliable performance of the AquaMatic Stagers
  • Accepts an input from a variety of flow sensors to electronically monitor the amount of water used
  • Homing operation - the control and stager automatically synchronize to the service position
  • NEMA 4XFG fiberglass enclosure
  • 115VAC 50/60Hz and 230VAC 50/60Hz
  • Up to 15 programmable timed regeneration cycle are available


NXT Stager Controller

Available in the NX48 and NX51 Series configurations, the NXT Stager Controller is easy to use and has the unique ability to fine tune stager operation for almost every application.


Features & Benefits:


  • The ability to fine tune stager operation for almost every application
  • A new intuitive interface for controlling AquaMatic valves
  • Enhanced 2x16 full-text backlit display
  • Detailed intuitive readouts
  • User friendly programming
  • Diagnostic feedback
  • Power back-up
  • Available in the NX48 and NX51 Series configurations


Water Softening Parts

  • AquaMatic Valve V42

    ¾ - to 6-inch "Y" Pattern Diaphragm Valve, Cast Iron or Cast Brass Body and Cap


    Features & Benefits


    • Large seat opening and high lift-disc for higher flow rates at a lower pressure loss
    • Compatible with wide range of line fluids including air or water applications
    • Can be actuated with either air or water as control fluid
  • AquaMatic Valve V46

    1-inch, 1½-inch, and 2-inch "Y" pattern diaphragm valves, stainless Steel body and cap


    Features & Benefits


    • Y-pattern design permits higher flow than other comparably sized diaphragm operated valves
    • Larger diaphragm area compared to seat area permits drip tight closing without any springs
    • Ideal for corrosive applications in paper/pulp, dairy, fuel, and water treatment industries

  • AquaMatic Valve K55

    ½-inch to 2-inch "Y" pattern diaphragm valves, glass-filled thermoplastic body and cap


    Features & Benefits


    • Isolated bonnet feature physically separates line fluid from control fluid eliminating the potential to contaminate control lines with corrosive fluids
    • Failsafe closed options available to keep valve closed against 30, 60, or 100 psi line pressures without control pressure
    • Designed for water treatment applications including those requiring acids, caustic and harsh chemicals that would rapidly corrode metal valves
  • Stagers

    AquaMatic stagers can be controlled by programmable controllers or adjustable times.


    Features & Benefits

    • Motor-driven rotary
    • Multiport pilot valve
    • Controls a set of individual diaphragm valves in a predefined sequence
  • 962 AquaMatic Stager Control

    Provides an easily adaptable control of stagers for diaphragm valve nests. This fully programmable series of controls provide the ability to fine-tune the operation to meet application requirements.


    Features & Benefits


    • Accepts an input from a variety of flow sensors to electronically monitor the amount of water used
    • Up to 15 programmable timed regeneration cycle are available
    • Optional battery back-up for flow monitoring during power outage


  • AquaMatic Easy Nest Kits

    Easy Nest Kits provide a straightforward approach to water treatment, by incorporating the flexibility of Autotrol controllers and the robust design of the AquaMatic valves into a simple and effective valve nest.


    Features & Benefits


    • Available in either composite or metal valve configurations
    • Filter and softener configurations available
    • Available with electronic or electromechanical controls
  • AquaMatic Valve VAV

    Constructed of cast iron, brass, stainless steel, and Nitrile elastomer components, giving an unparalleled service life ¾-inch through 3-inch threaded (N.P.T. or B.S.P.); 3-inch through 4-inch flanged drilled in accordance with ASA16.1 class 125, or BSP4504


    Features & Benefits

    • Spring-assist (open or closed)
    • Position indicator
    • Limit stop for adjustable flow rate control
  • AquaMatic Valve K52

    ½-inch to 2½-inch "Y" pattern diaphragm valves, glass-filled thermoplastic body and cap


    Features & Benefits

    • Separate diaphragm chambers protects the diaphragm from the flow stream, while allowing the valve to be serviced in-line
    • All internal parts in contact with media are made of composite materials
    • Can be actuated with either air or water as control fluid
  • NXT Stager Controller

    Available in the NX48 and NX51 Series configurations, the NXT Stager Controller is easy to use and has the unique ability to fine-tune stager operation for almost every application.


    Features & Benefits


    • The ability to fine-tune stager operation for almost every application
    • A new intuitive interface for controlling AquaMatic valves
    • Enhanced 2x16 full-text backlit display

  • AquaMatic Fluid Ejectors

    Aquamatic Fluid Ejectors are designed for commercial applications and are constructed with chemical-resistant PVC so your softening brine or deionization regenerants can be safely drawn into the systems.


    Features & Benefits


    • Min Operating Pressure 20 psi (1.37)
    • Max Operating Pressure 125 psi (8.6 bars)
    • Operating Temperature up to 140°F (60°)
    • Body Material PVC
