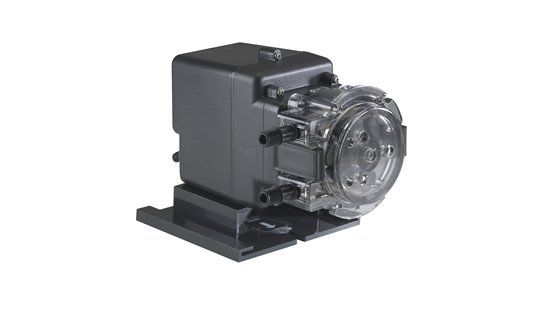

Stenner's Single Head Fixed Output Injection Pump

The electromechanical Classic Single Head Fixed Output Injection Pump works well with controllers.

The Single Head Fixed Output Injection Pump is one of four types in Stenner's Classic Series. This peristaltic metering pump injects solutions at a fixed rate and can be activated by a water meter for proportional feed for drinking water disinfection for animal health or homeowners. It can also be installed with a controller for sanitizing a swimming pool. Great news for installers in the commercial pool industry, the Classic Series single head fixed pump has been tested by ETL to conform to the ANSI/NSF standard 50 when used with ANSI/NSF 50 listed controllers. Additional applications include pH control, oxidation, corrosion and scale control and more.



The pump is also a component of Stenner's pre-assembled panel system known as the Proportional Injection System. The Proportional Injection System doses solution that is proportional to a water system's flow rate based on the water volume. A water meter sends a signal to Stenner's PCM (Pump Control Module) which actuates the fixed output pump. The system is suited for constant pressure (variable speed) well pumps, poultry and livestock houses, irrigation and systems with demand based backup wells and any application with varying flow rates. If a pre-assembled system isn't your preference, the pump, PCM and water meter are also available separately.



• Interchangeable pump heads and tubes to convert one model to another; not necessary to purchase a new pump.
• Easy and fast tube replacement without tools with the QuickPro®  pump head.
• The pump is built with two detachable components; the motor and the pump head that can be separated without tools.
