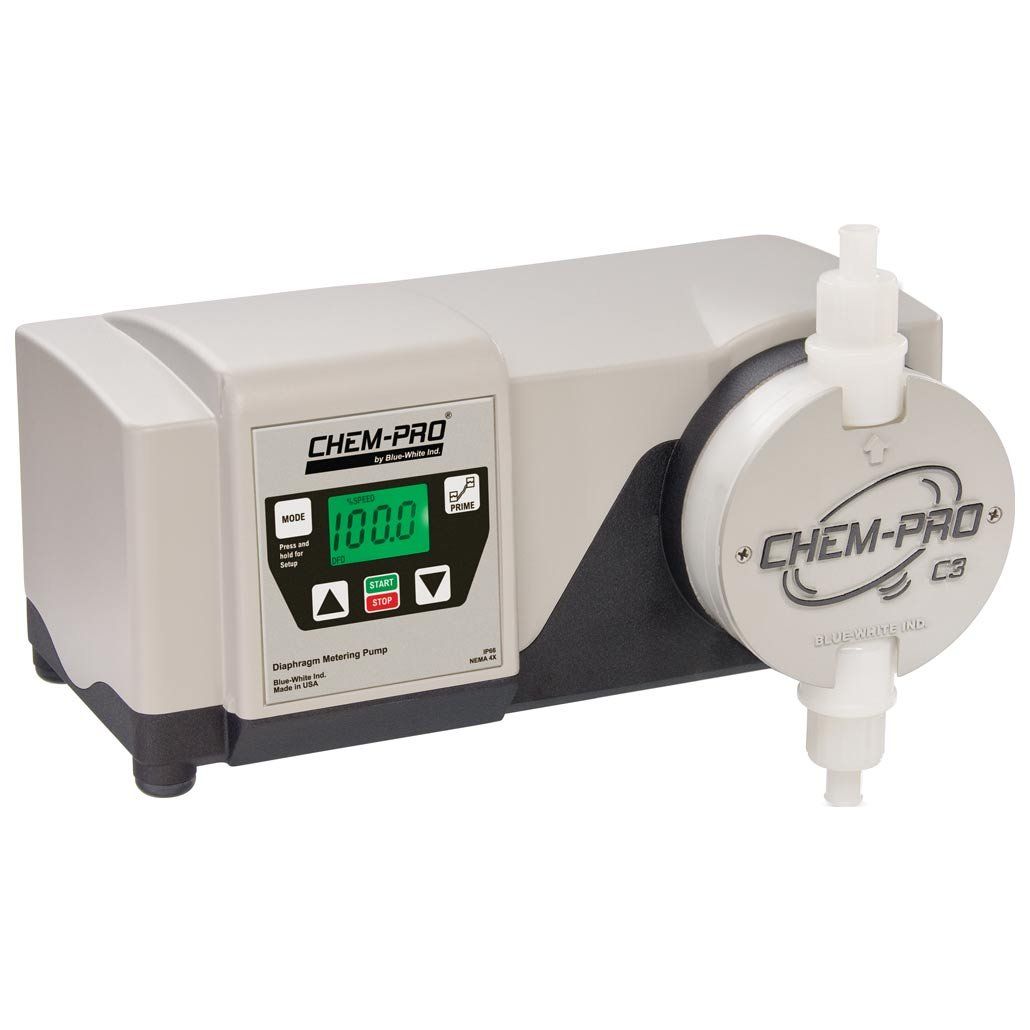

Blue-White CHEM-PRO® C3 DIAPHRAGM METERING PUMP

Benefits of a Diaphragm Pump:

• Capable of high pressures and high volume outputs.
• Non-loss motion variable speed DC motor is powerful, quiet and energy efficient
• Capabilities:

• Feed rate resolution 0.1%
• Output rates to: 40 GPH (153 LPH) and pressures to: 150 PSI (10.3 bar).

Communication & Interface:

• SCADA ready 5-30V DC open collector output loop closes while motor is energized.
• Profibus DPV1, Profinet RT I/O, Industrial Ethernet/IP, Modbus RTU and Modbus TCP available
• Signal inputs include: 4-20mA, pulse inputs, and Remote start/stop
• Signal outputs include: Relay (3 amp), open collector, 4-20mA (optional)
• Upgradeable firmware
• Large, intuitive control-pad
• Backlit LCD displays motor speed, input signal values, service and alarm status.
• Includes Diaphragm Failure Detection (DFD) system.
• Compatible with Blue-White’s Flow Verification Sensor (FVS) system
• Alarm relay monitors the DFD system and the FVS system.

Superior Engineered Design:

• Protective LCD snap-on cover, (UV, in field wear and tear)
• Large single piece junction box with terminal block connectors inside
• Large PVDF, Ceramic, TFE/P double ball check valves without metal springs.
• Priming and degassing valve built into the pump head.
• Exclusive Diaflex® Single Layer PVDF diaphragm.
• NEMA 4X (IP66) wash-down, chemically resistant powder coated enclosure.

Patents Pending:

• Exclusive Diaflex® Single Layer PVDF diaphragm.
